Unicorn Airframe
The OG Unicorn Airframe, a marvel in design by ZoeFPV of the Broken Prop Shop, is ready to take flight once again. Designed for all out acrobatic 3D performance, the only airframe design on the market centered around it.
Extremely light weight, getting over 6 minutes of flight time with a 1300mah 6s pack with 2208 1950kv motors. Zoe recoomends a BLHeli32 20x20 stack of your choice running BetaFlight 4.5 with her new Preset tuned for this frame and motor spec!

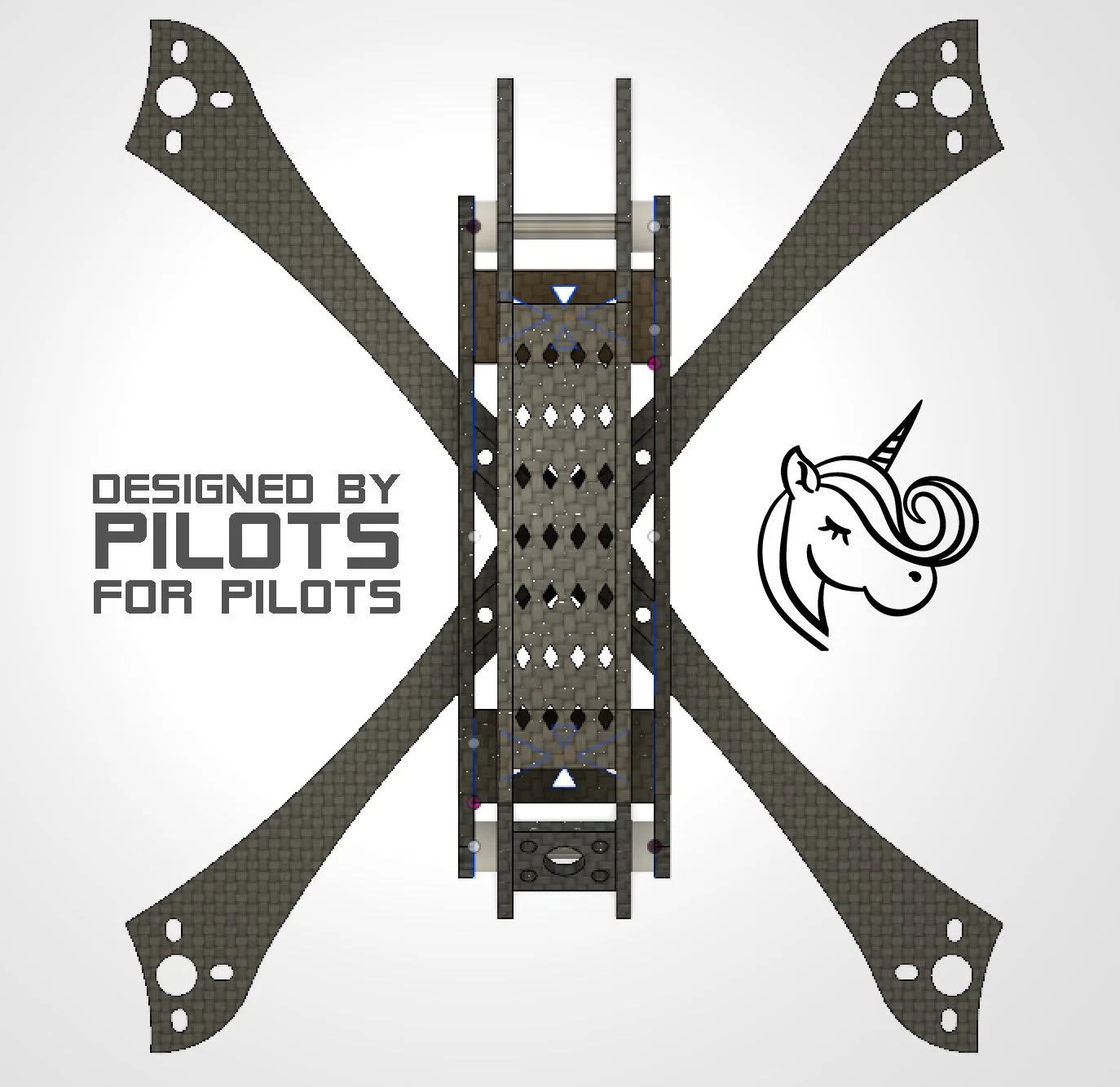

Crafted with precision and durability in mind, the Unicorn Airframe boasts 6mm arms, a robust 12mm middle core, and sleek 3mm top rails. It features a sturdy 2mm top plate, and for added convenience, optional 2mm bottom plates are also available. This versatile airframe is designed to accommodate the Caddex Vista, DJI 03(with 20x20mm FC and ESC), and most other VTX's can easily be attached to the optional bottom plates.
Carbon Fiber Pieces Included
4X 6mm OG Unicorn Arms
2x Arm Plates
2x Top OG Unicorn Rails
2x Bottom Rails
Hardware Pieces
X16 3mm Washer - Stack Washers (for spacing)
X12 3x8mm Cap Head Screws - Motor Screws
X12 3x5mm Standoffs - Rail spacers, and stack standoffs
X2 3x20mm Standoffs - Rail standoffs
X8 3x16mm Cap Heads - Rail Screws - Stack Inner Screws
X4 3x5mm Cap Heads - Stack Top Screws
X4 3x30mm Cap Heads - Outer Stack Screws
X4 3x25mm Cap Heads - Outer Stack Screws
X4 3mm Nylock Nut - Arm Nuts
X2 2x4mm Cap Hex Screws - Camera Mount Screws
